CHAPTER 15
SEMANTICS
This chapter brings semantics into the parsing process. In conjunction
with the change that assured termination (previous chapter), something
new must arise, ~ambiguous ~semantics. They provide for the
representation of exponentially many meanings in only a polynomial
amount of memory.
15.1
Introducing The SEM Field
Our discussion of the parser to this point has ignored semantics
entirely. We incorporate semantics by augmenting the type PHRASE
so as to have a new, SEM (semantics) field:
TYPE PHRASE = [ LEFT: CHOICE_OF_PHRASES
POS: INT
SEM: BASIC_PROCESS ] ;
As discussed in chapter 4, we always render semantics in terms of the
type BASIC_PROCESS. Even though we write the rule:
<FORM:a> + <TERM:b> -> <FORM: <*a*> + <*b*> >
we actually get:
<FORM:a> + <TERM:b> ->
<FORM: //[a;b;] <*a*> + <*b*> \\ >
All semantic data are constructed by the //...\\, even though you are
freed from having to specify this.
Let's see how to turn this rule into a program, including
semantics. The want-phrase is unchanged, i.e., this rule is programmed
by:
P1:= P;
IF P1.POS = <TERM> THEN
FOR P2 $E P1.LEFT; WITH P2.POS = '+' ;
!!
FOR P3 $E P2.LEFT; WITH P3.POS = <FORM> ;
DO
??
END
The give-phrase, the "??", is specified by using GIVE, as follows:
GIVE( [LEFT: P1.LEFT POS: <FORM>
SEM: //[P1;P3;] <*P1.SEM*> + <*P3.SEM*> \\ ] );
The parameter to GIVE is of type PHRASE, as always. What's new here is
the inclusion of the SEM field in the PHRASE. The SEM field, the
//[P1;P3;] ... \\
is a process which retains access to P1 and P3, so that it can perform
the necessary semantics by using P1 and P3, as in:
<*P1.SEM*> + <*P3.SEM*>
The invocation of our semantics thus will execute this sum, where the
two integers are acquired by invoking the semantics of P1 and of P3.
In fact, we actually translate:
<FORM:a> + <TERM:b> -> <FORM: ... >
into
P1:= P;
IF P1.POS = <TERM> THEN
FOR P2 $E P1.LEFT; WITH P2.POS = '+';
!!
FOR P3 $E P2.LEFT; WITH P3.POS = <FORM>;
DO
~A:= ~P3.SEM; "New"
~B:= ~P1.SEM; "New"
GIVE( [LEFT: P3.LEFT POS: <FORM>
SEM: ~//[A;B;] ... ~\\ ] );
END
FI
Notice that the variables mentioned in the rule, A and B, hold the SEM
fields of the matched want-phrase.
Thus, the user's semantic specification can continue to use the
variables A and B, the ones the user specified in the rule's want-
phrase.

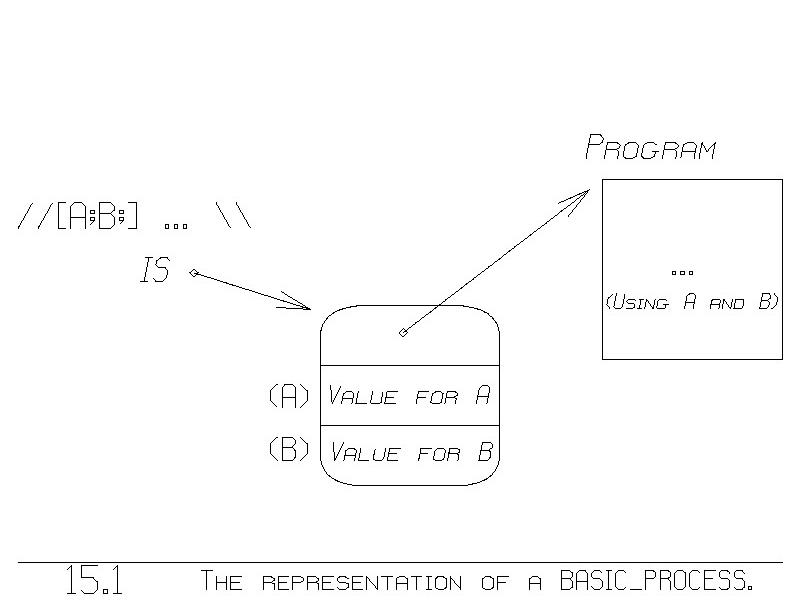

Recall that the execution of
//[A;B;] ... \\
is very fast. It makes merely a new block that holds the
contents of A and B, and a pointer to the "..." program (figure
15.1). That "..." program is ~not executed now. (This was
introduced in Chapter 2).
In general, we translate:
<POS(1):V(1)> ... <POS(n):V(n)> ->
<GIVE_POS: semantic_program >
into
P(n):= P;
IF P(n).POS = <POS(n)> THEN
FOR P(n-1) $E P(n).LEFT; WITH P(n-1).POS = <pos(n-1)>;
!!
...
!!
FOR P(1) $E P(2).LEFT; WITH P(1).POS = <pos(1)> ;
DO
V(1):= P(1).SEM;
V(2):= P(2).SEM;
...
V(n):= P(n).SEM;
GIVE( [LEFT: P(1).LEFT POS: <GIVE_POS>
SEM: //[V(1);...;V(n);]
Semantic_Program \\
] );
END

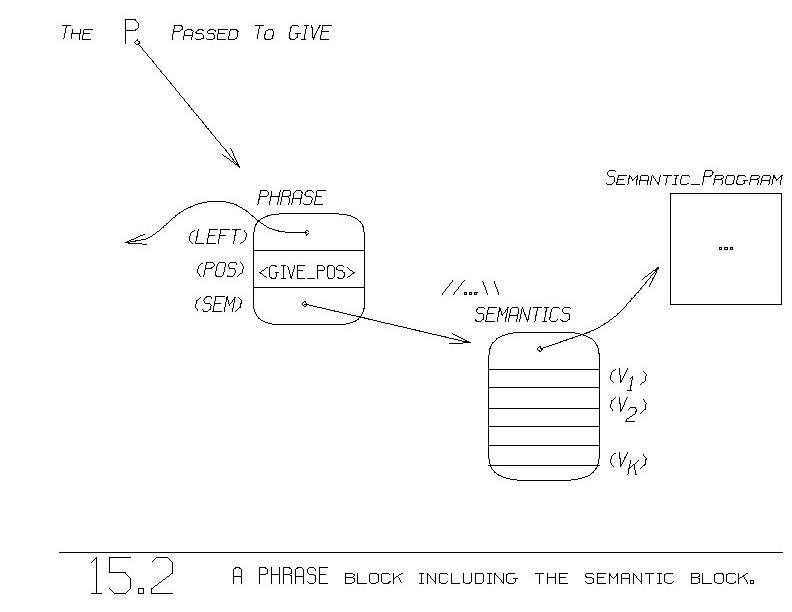

Figure 15.2 shows the PHRASE block we're passing to GIVE. Its SEM
field is itself a block. That semantic block's first bin points to the
already compiled semantic_program. The remaining bins hold the values
of variables, V(1)...V(n), which will come alive with those values upon
invocation of this SEM block.
---------------- Parentheses in previous paragraph except after "GIVE"
---------------- mean subscripting! ------------------------------------
(The program block "Semantic_Program" is not recreated now. It has
existed since we first gave our grammar to the computer).

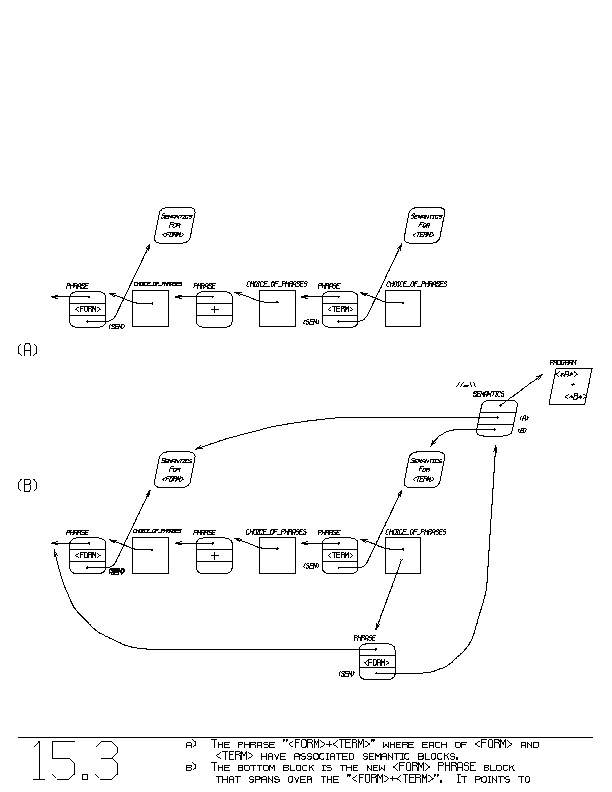

Figure 15.3a shows an occurence of the following rule's want-phrase:
<FORM:a> + <TERM:b> -> <FORM: <*a*> + <*b*> >
Each of the <FORM> and <TERM>'s semantic blocks are shown, although
we don't show their insides, the variables nor the pointers to some
program blocks.
Figure 15.3(b) shows the situation after this rule applies. The new
<FORM> PHRASE block (on the bottom) shares the same span with the
want-phrase. Its SEM field is an BASIC_PROCESS, a block containing
the address of a program and the values in variables. That block is
the second to rightmost block in the figure, labelled "SEMANTICS".
Notice that those values in A and B are the semantics taken from the
want-phrase's <FORM> and <TERM> blocks respectively. The semantic
program is:
<*A*> + <*B*>
It means invoke each of A and B so as to acquire their INTeger values,
and deliver their sum.
BOX: How are semantics included in our parser?
BOX:
BOX: How is it that the semantic specification can continue
BOX: to use the variables specified in the want-phrase?
BOX:
BOX: Where does the implicit "//...\\" get introduced.
15.1.1
General Rewrite Rules
Each element in the give-phrase of a ~general ~rewrite ~rule
(introduced in Section 1.3) specifies its own semantics, e.g.,
<A:a> <B:b> -> <X:...> <Y:...> <Z:...>
Each of X, Y, and Z gets its own semantics. As we GIVE each of X, Y,
and Z, we now supply a value for the SEM field each time, in the PHRASE
block that is passed to GIVE.
There is no notion of semantics associated with the rule as a whole.
Each GIVEn PHRASE block has its own independent semantics. Those
semantics can read the variables "a" and "b".
15.2
Ambiguous Semantics Arise When Duplicate PHRASE Blocks Are Supressed
Recall that GIVE is now defined by:
DEFINE GIVE( P:PHRASE ):
BEGIN VAR P1 = PHRASE ;
IF FOR P1 $E C; NEVER (P.POS=P1.POS) &
(P.LEFT=P1.LEFT)
THEN C:= C $> P;
the_grammar(P);
FI
END
ENDDEFN
That is, we put P on C and call the grammar with P ~as ~long ~as ~P
~isn't ~a ~duplicate of something already in C. If P is a duplicate,
then we have so far ignored P entirely, including its semantics.
We chose to supress duplicate PHRASE blocks because they added
nothing new. They only created duplicates of existing
phrases. We argued that all the new phrases caused by a duplicate
PHRASE block would be duplicates of those generated by the original.
We defined "duplicate" to mean "matching in both POS and LEFT".
Now that we've introduced semantics, "duplicate" no longer means
"identical". "Duplicates" can have different semantics. However,
GIVE and the grammar ~never read semantics (until the last rule
applies). Thus, GIVE's and the grammar's execution still depend in no
way upon semantics.
Suppose we didn't supress duplicates at all. Upon GIVing the original,
many new phrases resulted. The semantics in those phrases were also
built up. If we let GIVE call the grammar upon receiving the
duplicate, the grammar will build exact duplicates of the phrases and
semantics grown by the original.

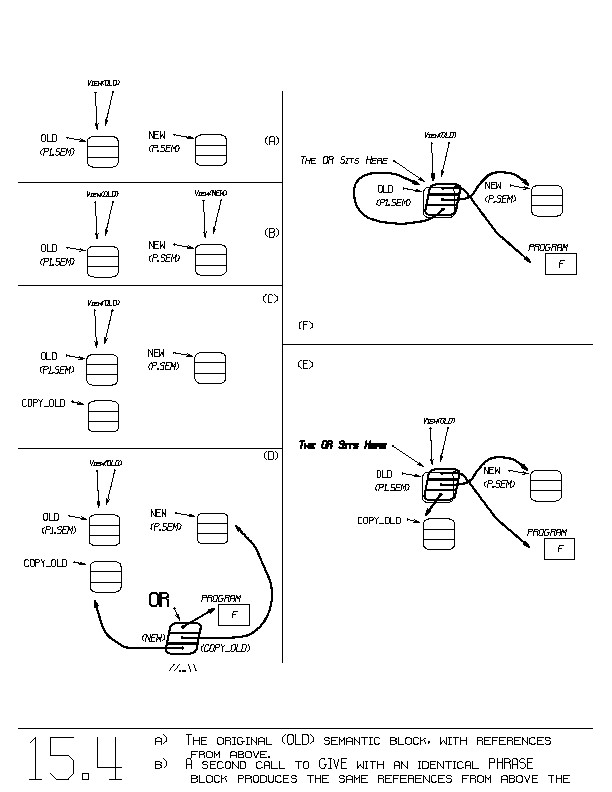

Figure 15.4(a) shows the semantics delivered with the original PHRASE
block (OLD). We show arrows coming from above, representing other
semantics built up in terms of the original PHRASE block's semantics.
Figure 15.4(b) shows the semantics of the duplicate PHRASE block (NEW).
The same arrows above the original semantics appears over this new
semantic block. After all, GIVE behaves identically the first and
second times around. The same semantic structure built over NEW
was built over OLD upon receipt of the original.
Let's call all points-of-view that can see OLD "View(OLD)". All
the structure above NEW is identical to that above OLD. That is, by
letting the duplicate PHRASE block pass thru GIVE, we gain two
structures:
View(OLD) and View(NEW)
Any point of view in View(OLD) has a corresponding point of view in
View(NEW). (The "view" structures are identical).
As long as one point of view in View(OLD) can participate in an
overall understanding of the user's input, then so will the
corresponding point-of-view in View(NEW). ~Both will be part of the
understanding, or neither will.

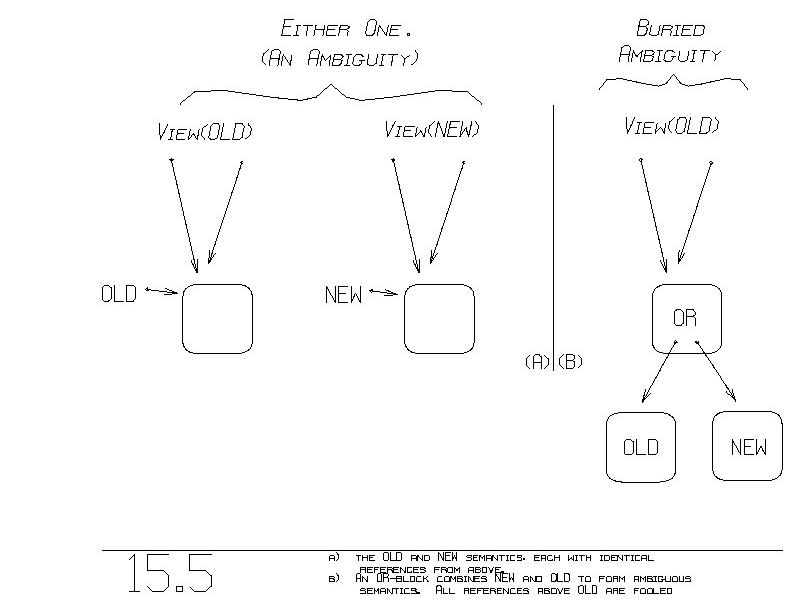

Figure 15.5(a) shows View(OLD) and View(NEW). Part (b) shows how we
can represent that exact same ambiguity, by burying the ambiguity
under one view.
We represent both View(OLD) and View(NEW) in only one structure by
representing:
View( OLD ~or NEW )
That is, you can use the structure View(OLD) to act also as the
structure View(NEW). You put both OLD and NEW under the same (old)
structure. The "OLD ~or NEW" is an instance of ambiguous semantics.
The block that ties NEW and OLD together is called the ~OR-block, as
it represents the choice of NEW ~or OLD.
BOX: What causes ambiguous semantics?
BOX:
BOX: Why does GIVE behave identically when given a PHRASE
BOX: block and later when given a duplicate of it?
15.2.1
Turning View(OLD) Into View( OLD ~or NEW )
We represent OLD ~or NEW like any other semantics. It is the
BASIC_PROCESS:
//[OLD;NEW;] f( OLD , NEW ) \\
The BASIC_PROCESS's invocation will perform
f( OLD , NEW ).
F may invoke OLD or invoke NEW. We leave that unspecified for now.
If f invokes OLD, then we have represented View(OLD). If f invokes
NEW, then we have represented View(NEW). (Part 7, Section 25.5.4 and
Chapter 28 reconsider F).
We modify the OLD semantic block ~in ~place so as to represent now
"OLD ~or NEW". We proceed in three steps. First, we copy the OLD
semantic block, and call it COPY_OLD:
COPY_OLD := COPY( OLD ) ;
Figure 15.4(c) shows COPY_OLD as well as View(OLD), OLD, and NEW.
We set OR to be the new OR block:
OR:= //[NEW;COPY_OLD;] f(NEW,COPY_OLD) \\ ;
This is shown in figure 15.4(d) with thick lines. We leave unspecified
the function "f" called within OR. It may choose to invoke NEW or
COPY_OLD.
Finally, we write over the OLD block:
@(OLD) := OR ;
Figure 15.4(e) shows the result. All points of view that could see OLD
now see (at the same address) the OR block. This is an objective
modification. Thus, what was OLD has become NEW ~or OLD. View(OLD)
now acts as View(NEW ~or OLD).
These semantics concerns are implemented in our final definition for
GIVE:
DEFINE GIVE( P:PHRASE ):
BEGIN VAR P1 = PHRASE; OLD,NEW,OR = BASIC_PROCESS;
IF FOR P1 $E C; NEVER (P.POS = P1.POS) &
(P.LEFT=P1.LEFT) ;
THEN "No duplicate found."
C:= C $> P ;
the_grammar(P);
ELSE "This ELSE clause is what's new ..."
"P is the duplicate of P1. (That FOR-loop
above leaves in P1 the (first) PHRASE block
that matches P)"
"The OLD and NEW semantic blocks..."
OLD:= P1.SEM;
NEW:= P.SEM;
"Prepare to modify OLD objectively..."
COPY_OLD:= COPY( OLD );
OR:= //[NEW;COPY_OLD;] f(NEW,COPY_OLD) \\ ;
@(OLD) := OR;
FI
END
ENDDEFN
You may wonder why we bothered to make a COPY of the OLD block, why we
put it into COPY_OLD, and why the OR block references COPY_OLD instead
of OLD. Figure 15.4(f) shows the situation if we didn't copy OLD. Upon
executing the objective modification:
@(OLD) := OR ;
the OR block's third bin, which is intended to represent the old
semantics, references now the OR block itself. The old semantics used
to reside there, but those data have been lost. Our use of COPY_OLD
preserves the old semantics, albeit at a different address.
BOX: How does GIVE retain the semantics of both the
BOX: original and duplicate block?
BOX:
BOX: What might the function "f" do? (Part 7 introduces
BOX: more examples, in particular Sections 25.5.4 and
BOX: 28.1).
BOX:
BOX: Why must OLD be copied?
15.2.2
What If The OLD and OR Blocks Are Of Different Sizes?
You might wonder how this can work, particularly if the OLD, NEW,
and OR blocks are of different sizes. Figure 15.4 shows them all being
three bins large. In fact the sizes may differ. It has been clearest
to show semantic blocks (of type BASIC_PROCESS) as single blocks (of
varying sizes).
However, the implementation actually represents

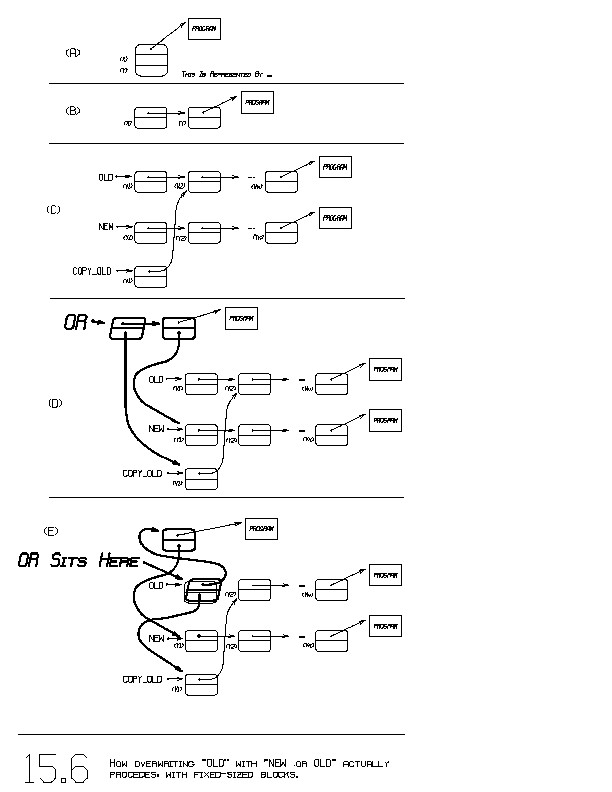

BASIC_PROCESSs as a linked list of fixed size blocks, as shown in
figure 15.6(b). We use always blocks of size two. These blocks are
linked so that one points to the next, and the last one points to the
program. Figure 15.6(c) shows OLD, NEW, and COPY_OLD as they are
really represented. Part(d) shows the OR BASIC_PROCESS, referencing
COPY_OLD and NEW. Part (e) shows the situation after executing the
objective modification:
@(OLD) := OR ;
Only the first block need be overwritten, as that is sufficient to make
the point of view OLD now represent the OR BASIC_PROCESS.
15.3
Examples Of Ambiguous Semantics
15.3.1
Example 1
The ICL expression
A + B # C
is syntactically ambiguous, as it represents both possible groupings:
(A+B) # C and
A + (B#C)
(We haven't seen the grammar rules involving "#", which allow for this
ambiguity).

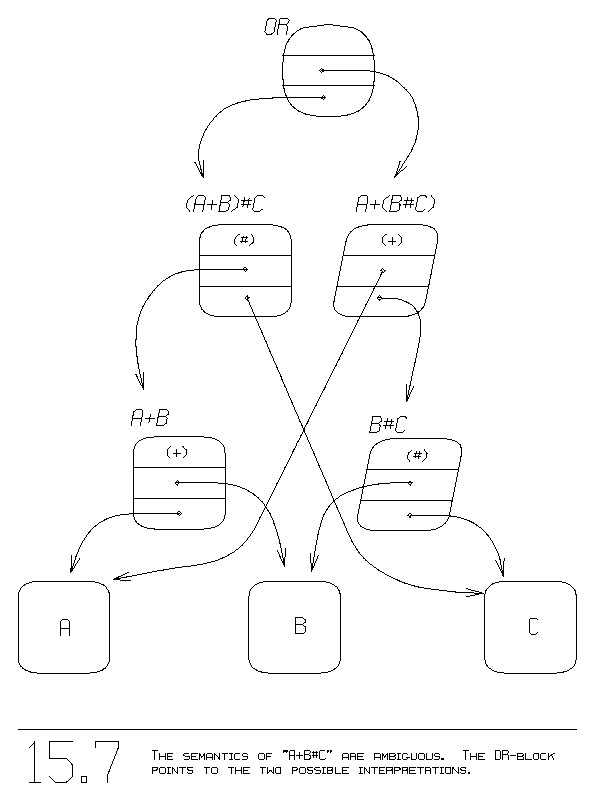

Figure 15.7 shows the semantic structure built up for A+B#C. The top
block is the OR block. It represents the semantics of
(A+B)#C ~or A+(B#C).
These semantic pictures omit the program blocks. Instead of a
pointer to a program block, we have written just "(+)" or
"(#)", to represent the semantic programs associated with the
"+" rule and the "#" rule.
Notice in figure 15.7 how the semantic block (A+B)#C references the
semantic block (A+B) and the semantic block for C. Similarly, the
slanted A+(B#C) block references the A and the (B#C) blocks. Also
note that both overall interpretations share the A, B, and C blocks.
15.3.2
Example 2
Let's consider a more complex example of ambiguous semantics. For
this purpose, let's assume that even the "+" operator alone is also
ambiguous, so that:
1+2+3 could be either (1+2)+3 or 1+(2+3)
and
1+2+3+4 could be either of ((1+2)+3)+4 or
(1+(2+3))+4 or
(1+2)+(3+4) or
1+((2+3)+4) or
1+(2+(3+4)).
(This ambiguity can be obtained by replacing the rule:
<FORM> + <TERM> -> <FORM>
by
<FORM> + <FORM> -> <FORM>
We introduce this ambiguity only for the purposes of this
example. However, ICL does indeed have a class of operators
that introduces this kind of ambiguity, the ~infix notation
for calling functions:
paramter_1 \Function_name parameter_2
The grouping of:
value1 \Function1 value2 \Function2 value3
is ambiguous, just like the example with the "+" and "#". Do
we call Function1 first, or Function2?)
Consider two of the five possibilities for 1+2+3+4:
((1+2)+3) + 4 and
(1+(2+3)) + 4
The distinction between these two interpretations occurs within the

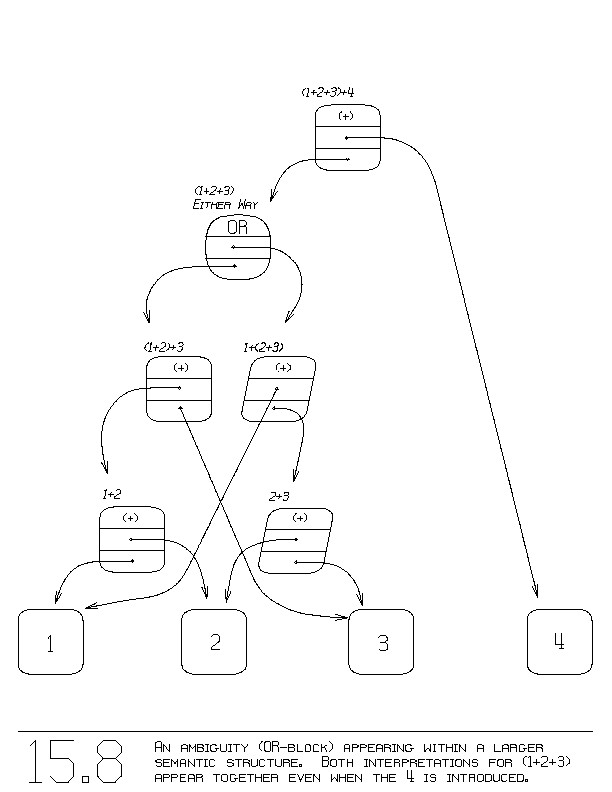

1+2+3 part, independent of the 4 part. Figure 15.8 shows the semantics
for these two interpretations. The distinction between the
two interpretations for 1+2+3 is ~buried within the semantics for
(1+2+3)+4. That is, the "?" in "?+4" is ambiguous.
We have not shown the semantics for 1+(2+3+4) nor (1+2)+(3+4). The
former, the:
1 + (2+3+4)
represents actually two interpretations, as did our old (1+2+3)+4:
1 + ((2+3)+4)
1 + (2+(3+4))
Again, the ambiguity in this case involves only the 2+3+4, independent
of the 1.
15.3.3
Example 3
Consider an even more complex example:
1+2+3+4+5
We will limit our attention to only those interpretations that group
the 1+2+3 together:
(1+2+3) + (4 + 5) or
((1+2+3) + 4) + 5
Both these interpretations ~share the same representation for the
(1+2+3). Here we have an ambiguity ~within an ambiguity. The two
lines just shown form the outer ambiguity. Within each of those two
interpretations, the 1+2+3 part represents the inner ambiguity,
representing both:
(1+2)+3 and
1+(2+3)

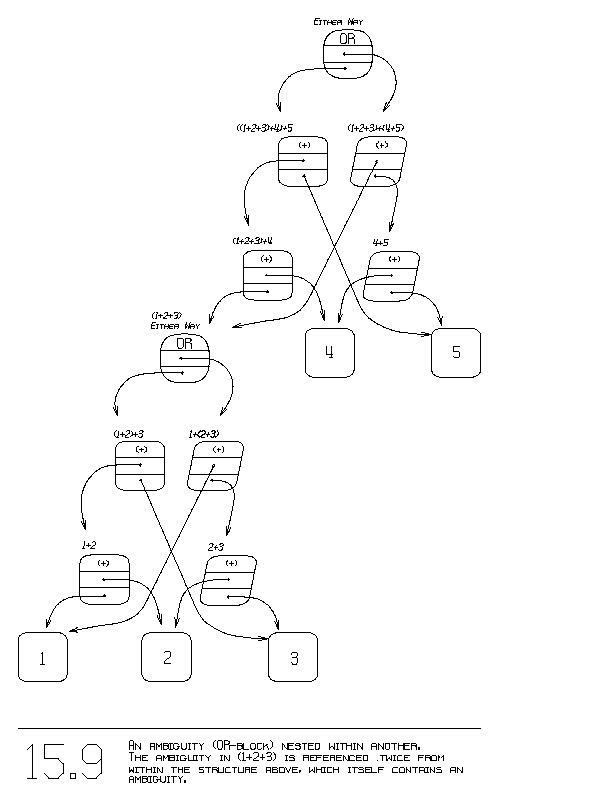

Figure 15.9 illustrates this nested ambiguity. There is an OR block in
the center of the figure, which represents both interpretations for
1+2+3. That OR block is referenced from above, twice, once within the:
( (1+2+3) + 4 ) + 5
and once within the
(1+2+3) + (4+5).
15.4
Exponentially Many Meanings In Only Polynomial Space

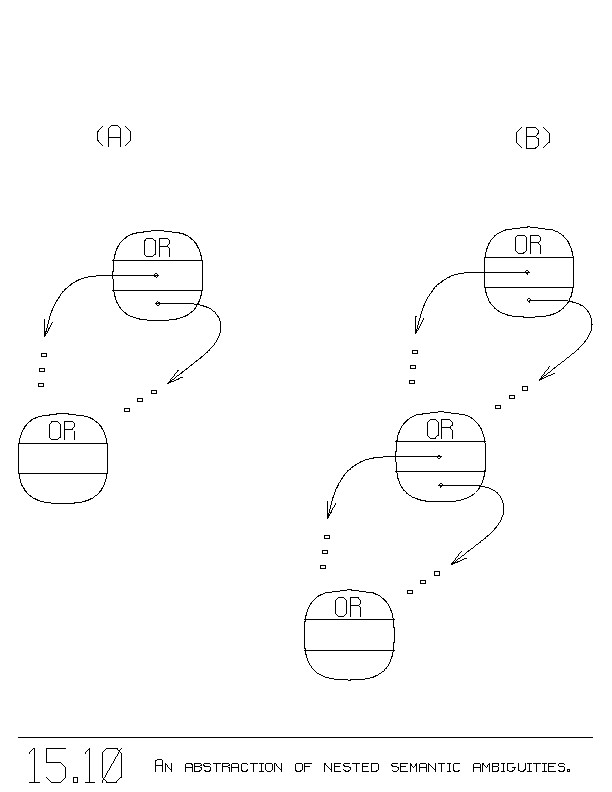

Figure 15.10 is an abstraction of figure 15.9, showing only the OR
blocks. The essential ingredient is that both interpretations
represented by the upper OR block come to share the other OR block
below. Figure 15.10(b) shows a similar nesting, this time involving
three OR blocks.
This nesting of ambiguities within ambiguities gives rise to
exponentially many distinct meanings represented in only polynomial
memory. Each OR block represents a two-way choice.
If there are N OR blocks nested like this, then there are 2-to-th-Nth
possible overall choices.
Our parser represents at least exponentially many phrases in only
polynomial memory. We see the same thing here with semantics. Both
exponentials are possible because of sharing. Distinct meanings
share much in common. Only the essential differences among
meanings are represented, thus giving us this wonderful savings.
Since our parser consumes only polynomial execution time, the amount of
memory used to represent all phrases and all semantics is also bounded
above by the polynomial. Within that polynomial memory, we know that
at least exponentially many distinct phrases and meanings must be
represented, as there is at least exponentially many ways to introduce
parentheses around the expression of lenght N:
1+2+ ... +N
Our examples for 1+2+3+4 and 1+2+3+4+5 showed only some of the
possible interpretations. There are many more, and they are also
represented with a great deal of sharing. For example, the two
interpretations:
(1+(2+3))+4 and
1+((2+3)+4)
share in common the (2+3).
How do we handle ultimately such voluminous semantics? If
exponentially many meanings are indeed represented, won't it take an
exponential amount of time to process all of them? Certainly if we
enumerate all the possible meanings, exponential time will be consumed.
However, many kinds of very useful processing can be done in only
polynomial time! Part 7 continues with these considerations.
BOX: How can exponentially many meanings be represented
BOX: in only polynomial space?
BOX:
BOX: Why are there at least exponentially many possible ways
BOX: to place parentheses within a string like "1+2+...+N"?
