CHAPTER 27


				POLYNOMIAL UPPER BOUND
		    FOR PROCESSING THE SEMANTICS OF LANGUAGES
		    THAT GENERATE PHRASES IN OTHER LANGUAGES



	  This chapter concentrates on languages whose semantics generate
	  phrases in other languages.	 Our syntax grammar from the previous
	  chapter is an example.  Its semantics generate phrases in the
	  ~datatype ~language.

	  This semantic process can consume an exponential amount of time if
	  we're not careful.

	We describe a transformation that can be applied to any semantic
	structure.  It will render the semantic structure immune from an
	exponential blowup of compute time.  We will process potentially
	exponentially many meanings in only polynomial time.

	The next chapter shows the transformation to be applied to the ~last
	language in a sequence, where the semantics do not generate phrases
	in another language.  There, ambiguity might need to be resolved via
	common sense, as the language processing comes to a close.

	This chapter assumes that the (syntax) grammar has no cyclic coercions,
	such as the pair:

		A	->	B
	and
		B	->	A

	The next chapter does deal with such unrestricted coercions.


27.1
Shared Semantics - Efficient Evaluation

	We saw a parser in Chapters 12 and 14 that can parse a string of
	length N at a cost that is only a polynomial function of N.  This is
	true even if the string has an exponential number of meanings, due to
	ambiguities.  The semantic structure built up during the parsing
	consumes only a polynomial amount of memory, but it can represent
	exponentially many meanings, due to the automatic sharing of common
	sub-meanings.

	If we're not careful, we may consume an exponential amount of time
	  processing all exponentially many meanings.  Even with a structure of
	  only polynomial size, we might consume exponential cost by evaluating
	  a given block more than once.

	  Figure 25.8 shows an example of ambiguous semantics.  When ambiguities
	  exist, another phenomenon also arises.	Notice in figure 25.8 how the
	  blocks for A, B, and C are ~shared.  Each has more than one pointer
	  pointing to it.

	  Consider the invocation of the OR block.  It first invokes its left
	  choice, (A+B)#C, and then invokes its other choice, A+(B#C).  Each
	  interpretation is given a chance to generate phrases in the datatype
	  language.	 Notice that in the invocation of each of these choices, A
	  will be invoked ~twice, as will B and C.  A will be asked to generate
	  its phrase twice, once within (A+B)#C and once within A+(B#C).

	  Although you may think of A, B, and C as variables (leaves in the
	  semantic tree) one can replace each of A, B, and C by expressions,
	  such as in:

				A	  +	    B		#	  C

				X*Y	  +	    U*V	#	  X*Y


	  The invocation of A may be nontrivial.	In general, its expense can be
	  arbitrarily great.  Therefore, we should be concerned about executing
	  A twice.


27.1.1
Surpressing Exponential Blowup

	  Things can get worse.	 The semantics represented by A might itself
	  contain ambiguities.	Figure 15.10 shows semantic ambiguities nested
	  within one another, three levels deep.	There are a total of eight
	  possible paths, when you consider that each of the three OR-blocks
	  offers two choices.  Both choices are always taken at each OR-block.

	  For example, the execution of the top OR-block invokes twice the OR-
	  block second from the top.	Each of those invocations invokes twice
	  the bottom OR-block.	The bottom OR-block thus is invoked a total of
	  four times.  Each of those four invocations invokes twice things at the
	  very bottom of the structure.  Thus, things at the bottom of that
	  structure will be executed a total of eight times.

	  In general, ambiguities nested N levels deep gives rise to 2^N meanings
	  and 2^N executions of things at the bottom of the semantic structure.
	  We expected there to be 2^N meanings (Section 15.4) but we
	  never thought about 2^N executions.  Must we lose the polynomial upper
	  bound when we invoke the semantics?

	  No.	 We can manage to execute all 2^N possible meanings in only
	  polynomial time by making sure that no semantic block gets invoked
	  twice.  That is, upon the first invocation of any shared block, we can
	  carry out the invocation and then ~store the results with the block.
	  Upon a subsequent invocation, we deliver our saved results, and avoid
	  recomputing them.

	  Given that any semantic block executes only once, the total time taken
	  to invoke all the semantics is bounded above by the total number of
	  semantic blocks.  Because there is only a polynomial number of
	  semantic blocks, we can process exponentially many represented meanings
	  in only polynomial time and memory consumption, by supressing duplicate
	  executions of the same block.

	  This trick of supressing duplicate executions might not always be
	  possible.	 It is, however, in our applications.


		    BOX:	What can cause exponential execution times even in
		    BOX:	structures that are only polynomial in size?
		    BOX:
		    BOX:	Supposing amgiguities are nested six deep, how long
		    BOX:	may it take to invoke those semantics?
		    BOX:
		    BOX:	How do we supress exponential blowup?


27.1.2
Keep Only Full-Spanning Types

	  The invocation of the semantics of EXPRs generates phrases in the
	  datatype language.  Of all the generated phrases, we are really
	  interested in only full-spanning types.	 Notice how we've used those
	generated phrases.  We always collect up only the full-spanning
	types, via the "[>...<]" notation.

	Let's therefore store with each semantic block only the ~full-spanning
	  types that are generated by the first invocation.  Upon subsequent
	  invocations, we can look thru the saved, full-spanning unit-length
	  phrases (types) and GIVE each one again, ~as ~though ~we ~were
	  ~generating ~those ~phrases ~for ~the ~first ~time.	 However, we do it
	  this time very quickly, without recomputing the entire phrase
	  generation again.

	pic

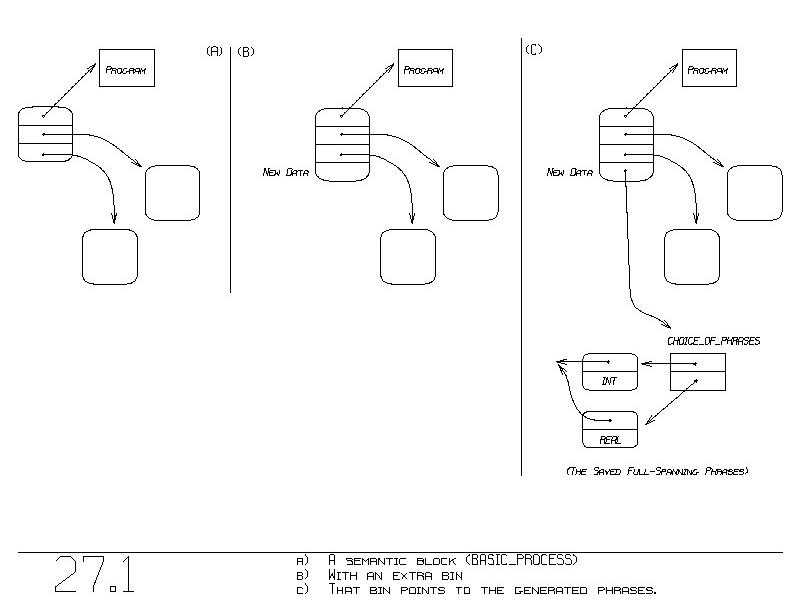

	  Figure 27.1(a) shows an original semantic block.  As usual, the first
	  bin in the block points off to a program, and values for the program's
	variables are held in the remaining bins.  Conceptually, let's
	  introduce a spare bin in the semantic block, as shown in figure
	  27.1(b).	Initially, nothing resides in that bin.

	  Upon first invocation, the datatype phrases are generated as usual,
	  and only the full-spanning results are kept, as shown in figure
	  27.1(c).	Upon subsequent invocations, we notice that our new last bin
	  already holds some data.  We therefore don't call our program.
	Instead, we GIVE each of the full-spanning phrases.


27.1.2.1
How We Might GIVE The Full-Spanning Types

	We now show how we might GIVE each of our full-spanning phrases.
	Let P be of type PHRASE, so as to be able to hang on to each of our
	full-spanning unit-length PHRASE blocks:

		FOR  P  $E  the_last_bin ;  "(a CHOICE_OF_PHRASES)"
		DO
			P.LEFT:= LEFT;
			GIVE(P);
		END

	For each full-spanning unit-length phrase P, we GIVE it, except that
	we ignore P's LEFT field and instead replace it with the value in the
	  global variable LEFT.

	  Recall, we are expected to produce phrases that span from LEFT to C.
	  We've just incorporated LEFT.  Our call to GIVE implicitly puts our
	phrase block P onto C.  Thus, each phrase block P is GIVEn so as to
	span from LEFT to C.


27.2
What We Do At Shared Semantic Blocks

	Suppose S is a shared semantic block.  As a shared block, at least
	two different points of view can invoke it.  Our job is to affect S
	so that upon non-first invocations, its execution is supressed,
	although we must ~act as though we were generating phrases again.

	Let's first explore how we'd like to see the shared block behave.
	We will later consider how we map this behavior to any block (S) that
	is shared.

	Here is a BASIC_PROCESS that should replace S:

		VAR	SEED = CHOICE_OF_PHRASES ;

		DO	SEED:= NIL;

		GIVE	//{ S; SEED; }

			    BEGIN  VAR  P=PHRASE;

				IF  -DEFINED( SEED )  THEN

					SEED :=  [>   <*S*>;   <]   ;
				FI

				FOR P $E SEED;
				DO
					P.LEFT:= LEFT;
					GIVE(P);
				END
			    END     \\

	We declare the variable SEED and set it to NIL.  SEED will hold
	ultimately the full-spanning unit-length phrases generated by S.
	SEED is the extra bin.  This replacement BASIC_PROCESS for S always
	checks to see if SEED is defined (i.e., filled in).  If it's not, we
	  fill it in first thing, by executing:

		    SEED :=	 [>  <*S*>;	 <]	;

	  This invokes S, causing phrases to be generated (as we expect of S).
	  The full-spanning unit-length phrases are collected up and assigned
	  into SEED.

	  Now, whether it be the first or subsequent invocation, we GIVE each
	  PHRASE block in SEED, as in:

		    FOR P $E SEED;
		    DO
				P.LEFT:= LEFT;
				GIVE(P);
		    END

	  We act as though we were generating phrases all over again.  As
	  discussed earlier, this GIVEs each phrase block P, so that it spans
	  from (the given) LEFT to C.

	  Again, the first invocation sets SEED, and all invocations augment
	  C with the phrases in SEED.	 Thus, only the first invocation actually
	  invokes S.  We have achieved the supression of duplicate invocations
	  of S.

	  There is a little problem associated with this algorithm, which we will
	  identify and remedy shortly.  First, let's arrange to put our new
	BASIC_PROCESS right over the block S.  This will make S itself
	adopt our desired behavior.


		BOX:	What do we do at shared blocks (e.g., S)?
		BOX:
		BOX:	What is SEED?
		BOX:
		BOX:	How many times do we compute SEED?
		BOX:
		BOX:	What do we do regardless of whether this is a first
		BOX:	or non-first invocation?
		BOX:
		BOX:	Why do we modify P.LEFT?


27.2.1
Overwriting The Shared Block With The New BASIC_PROCESS

	We want our new BASIC_PROCESS to reside in S's place, so that whenever
	  somebody arrives at the block S, they encounter instead our new
	  BASIC_PROCESS.

	  We need to @-assign (modify objectively) the block S.  Basically, we
	  want to say:

		    @(S):=	//{S;SEED;}	 ...	\\ ;

	  where the "//...\\" is what was just shown.  This makes our new
	  block reside right where the S block is.

	  Unfortunately, this straightforward @-assignment will suprise us
	  (like in figure 15.4).  We proceed safely as follows:

		    VAR	SEED = CHOICE_OF_PHRASES ;
				COPY_S = BASIC_PROCESS ;

		    SEED:= NIL;

		    COPY_S:= COPY(S) ;

		    @(S):=	//{ COPY_S; SEED; }

					  ...	   (as before, but using COPY_S in place
						    of S)
				   \\ ;

	  We've introduced COPY_S, which we must use in place of S within our
	//...\\.

	pic

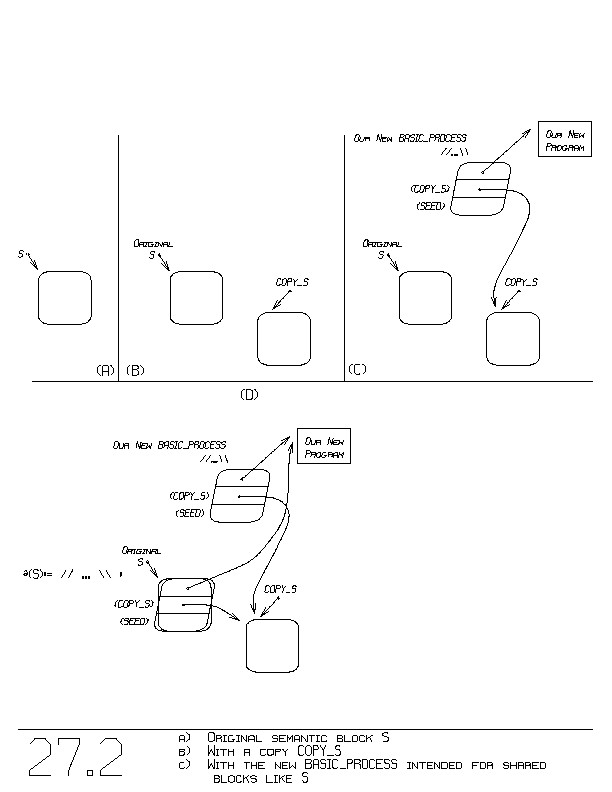

	Figure 27.2(b) shows the original S and COPY_S.  Part (c) shows our new
	process as well, the "//...\\".  It retains access to COPY_S.  Part (d)
	shows what the "@" does.  It overwrites the original S block so as to
	now be our new BASIC_PROCESS.  Thus, upon arriving at the original S
	block, one sees our new BASIC_PROCESS.

	Our new BASIC_PROCESS retains access to S's old data, now called
	  COPY_S.  The new BASIC_PROCESS, although invoked potentially many
	  times, invokes COPY_S only once.	(Another example of this use of the
	  "@" operator appears in Section 15.2).	Here is the complete new
	  scenario:

		    VAR	SEED = CHOICE_OF_PHRASES ;
				COPY_S = BASIC_PROCESS ;

		    SEED:= NIL;

		    COPY_S:= COPY(S);

		    @(S):=	//{ COPY_S; SEED; }

				    BEGIN  VAR  P=PHRASE;

					  IF	-DEFINED( SEED )	THEN

						    SEED :=	 [>	<*COPY_S*>;	  <]	 ;
					  FI

					  FOR P $E SEED;
					  DO
						    P.LEFT:= LEFT;
						    GIVE(P);
					  END
				    END	\\  ;


	    BOX:  BOX:	How many iterations does "FOR P $E SEED;" cause
		    BOX:	on the first and on subsequent invocations?


27.2.2
Resetting Shared Blocks - Introducing The Variable PRESENT_TIME


	  Let's generalize slightly our new BASIC_PROCESS.

	The shared block's action of generating phrases can conceivably depend
	  on a set of ~global ~variables.  Upon first invocation, those
	  variables may be read to help direct the phrase generation.  However,
	  upon subsequent invocations, those variables won't be read, as we
	use the result from the first invocation without re-invoking COPY_S.
	What if those global variables change in value between invocations?

	As things stand now, the global variables will be ignored on all
	non-first invocations.  We need a way to ask the shared block to
	regenerate its phrases from scratch, ignoring the results (SEED)
	acquired from a previous invocation.

	Let's invent a new global variable named PRESENT_TIME:

		    VAR	PRESENT_TIME = INT ;

	  Let's agree to ~increment this variable whenever we want to announce
	that other global variable(s) have been changed.  That is, let's have
	  shared blocks remember SEED only as long as PRESENT_TIME remains
	  unchanged.

	  When PRESENT_TIME changes, we will ignore SEED and invoke
	  S all over again.  This assures that new values in global variables
	  will actually be used as we generate now possibly a different set of
	  phrases, depending on the global variables' values.

	We respond to PRESENT_TIME by keeping track of what PRESENT_TIME's
	  value was upon our last invocation, which we will call LAST_TIME:

		    VAR	COPY_S = BASIC_PROCESS;
				SEED = CHOICE_OF_PHRASES;
				LAST_TIME = INT;

		    SEED:= NIL;
		    LAST_TIME:= 0;

		    COPY_S:= COPY(S);

		    @(S):= //{ SEED; LAST_TIME; COPY_S; }

				    BEGIN  VAR  P = PHRASE;

					  IF	PRESENT_TIME > LAST_TIME  THEN

						    SEED:=	[>  <*COPY_S*>;  <] ;

						    LAST_TIME:= PRESENT_TIME;
					  FI


					  FOR P $E SEED;
					  DO
						    P.LEFT:= LEFT;
						    P.SEM:= COPY(P.SEM);    "(new)"
						    GIVE(P);
					  END
				    END    \\ ;

	  One of the two differences between this and our previous rendition,
	  is the IF-statement.	Now, instead of checking if SEED is undefined,
	  we compare LAST_TIME to PRESENT_TIME.  When they don't match, we
	re-invoke COPY_S and assign the new results into SEED.

	This way, of course, anybody can cause us to re-invoke COPY_S, just by
	incrementing PRESENT_TIME.  We finally set LAST_TIME to PRESENT_TIME
	so that we will ~not re-invoke COPY_S, until someone increments
	PRESENT_TIME again.

	We assume that PRESENT_TIME is always one or greater, so that our
	initial zero value for LAST_TIME is sufficient to guarantee that we
	will invoke COPY_S upon the first invocation.


27.2.3
One Other Subtle But Necessary Change

	We made one other, unrelated change.  After assigning LEFT into P.LEFT,
	we perform:

		P.SEM :=  COPY( P.SEM )  ;

	This doesn't change P.SEM, except to reference now a separate copy of
	  P.SEM.  This is done for a subtle reason.  Recall that GIVE might
	  modify objectively the semantic block P.SEM of any given PHRASE block
	  P.	GIVE objectively modifies the semantic structure P.SEM in its
	  effort to supress duplicate phrase blocks.

	  Such an objective modification would become apparent from the point of
	  view of SEED, which contains P.  By passing into GIVE a copy of our
	  semantic block (P.SEM), that copy might be modified objectively by
	  GIVE, but the original P.SEM is not modified.	 (GIVE never gets a hold
	  of the original).  This assures that our data in SEED will not be
	  modified, as a side-effect of GIVE.


		    BOX:	How do you cause shared blocks to reevaluate from
		    BOX:	scratch?
		    BOX:
		    BOX:	Why might you want to perform such reevaluations?
		    BOX:	(An important example appears in the next chapter
		    BOX:	in Section 28.4.5).
		    BOX:
		    BOX:	Even after such a reset, does the next evaluation
		    BOX:	incur polynomial or exponential cost?
		    BOX:
		    BOX:	Why do we copy P.SEM?


27.3
A Closer Look At The Shared Activity

	  At shared blocks, we've acted out phrase generation via:

		FOR P $E SEED;
		DO
			...
			GIVE(P);
		END

	We set SEED via:

		SEED:=  [>  <*COPY_S*>;  <]  ;


	Now, suppose the invocation of COPY_S generates a full-spanning INT.
	With the datatype grammar active, which may include the coercion from
	INT to REAL:

		~INT	->	~REAL

	that full-spanning INT will be accompanied by a full-spanning REAL.

	SEED therefore contains both an INT and a REAL phrase.

	pic

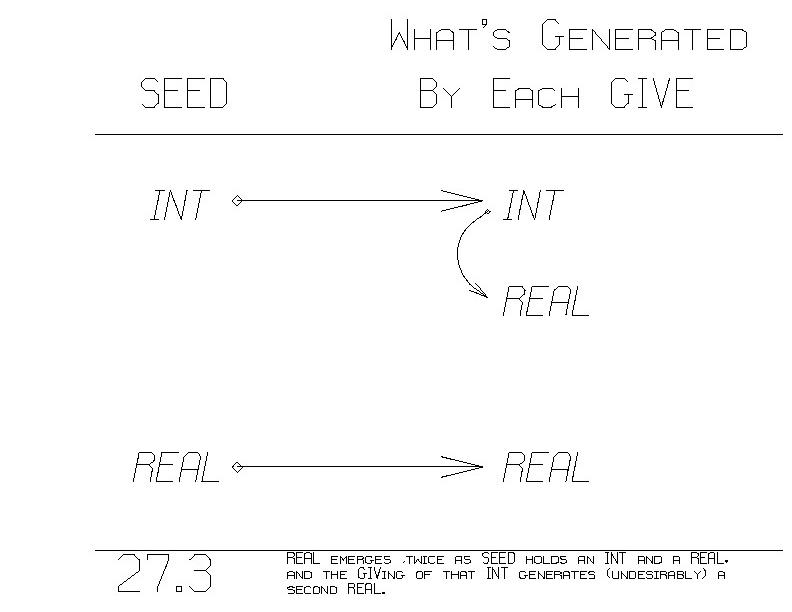

	Look what happens when we GIVE each of these.  When we GIVE the INT,
	that INT and ~another REAL will go onto C.  That other REAL arises
	because the grammar is active, acting upon the INT.  When we then GIVE
	SEED's REAL phrase, we wind up with ~two REALs, as figure 27.3
	  illustrates.  The two REALs have identical semantics.  Each is the
	  result of coercing the ~same INT to a REAL.  We have just introduced a
	  meaningless ambiguity.  The two parts of the ambiguous meaning under
	  REAL are identical.

	  Our activity at shared blocks appears to introduce meaningless
	  ambiguities.  To supress them, let's modify the assignment into SEED:

		SEED :=  [>  <*COPY_S*>  <]  ;

	We wish during this execution that GIVE wouldn't apply the grammar
	  when the full-spanning INT is generated within "<*COPY_S*>".  This
	  would result in SEED containing only the full-spanning INT and no
	  REAL, (at least no REAL derived from the INT).

	  This way, when we go thru SEED and GIVE each of the phrase blocks, an
	  active grammar will then and only then apply the coercion from INT to
	  REAL, and thus produce a total of only one REAL.


27.3.1
Arresting Full-Spanning Types

	  We wish to ~arrest all calls to GIVE that introduce full-spanning
	  unit-length phrases.	It is those calls that we want to replay later,
	  when we are asked to generate our phrases.  We want those full-
	  spanning phrases, not yet seen by the grammar, to form SEED.

	  We will need to modify our statement that assigns into SEED.  It will
	  have to tell GIVE to arrest full-spanning unit-length phrases, and
	  eventually collect those full-spanning phrases into SEED.

	  Let's communicate this desire to GIVE via the following variables:

		VAR	FULL_SPANNING_LEFT = CHOICE_OF_PHRASES ;

				" FULL_SPANNING_LEFT defines the left endpoint
				  of what GIVE will consider 'full-spanning'. "

			FULL_SPANNERS =  CHOICE_OF_PHRASES ;

				" FULL_SPANNERS will hold all arrested full-
				  spanning unit-length phrases. "


27.3.2
Modifying GIVE

	FULL_SPANNING_LEFT tells GIVE what we consider to be the left endpoint
	of full-spanning phrases.  GIVE will note such phrases by doing
	nothing, except putting them onto FULL_SPANNERS.

	No grammar will be called, and no looking for duplicate PHRASE blocks
	will occur.

	We redefine GIVE now:

		DEFINE	GIVE( P: PHRASE ):

			IF  P.LEFT =:= FULL_SPANNING_LEFT

			THEN	FULL_SPANNERS::= $>  P ;

			ELSE
				exactly as before
			FI
		ENDDEFN

	The "=:=" in the IF-clause compares the addresses of the blocks P.LEFT
	and FULL_SPANNING_LEFT.  When they are identical addresses (meaning the
	~same CHOICE_OF_PHRASES), this phrase block P is said to be
	full-spanning.  It is arrested and put onto FULL_SPANNERS.

	We've supressed some of GIVE's activity.  Full-spanning unit-length
	phrases are not seen by the grammar.  However, if we were to call the
	old GIVE with the phrase blocks on FULL_SPANNERS, we would restore that
	lost activity.

		The order in which GIVE receives its phrase blocks has no
		effect on the result after all the GIVing is completed.
		Delaying the full-spanners and then GIVing them all at once is
		equivalent to having not arrested the full-spanning unit-length
		phrases in the first place.


27.3.3
Disabling GIVE's New Feature

	  For flexibility, let's invent a way to disable this new feature of
	GIVE.  The action described in the following will make GIVE behave
	the old way, arresting no phrases.

	Let's define a function that delivers a new PHRASE block, one that
	  nobody else references:

		    DEFINE	NEW = CHOICE_OF_PHRASES ;

				{  [POS: 0]	 }

		    ENDDEFN

	  (This dummy CHOICE_OF_PHRASES has one phrase block, containing zero
	  as its part-of-speech.  Nobody will ever look at it this deeply
	  though).

	  Let's declare a variable NEVER to hold a dummy CHOICE_OF_PHRASES
	that no one else will ever reference:

		VAR	NEVER = CHOICE_OF_PHRASES ;

		NEVER:= NEW ;

	We know that nobody references this dummy because all our programs up
	to now never read the variable NEVER.

	Our one exception will be to put NEVER's data into FULL_SPANNING_LEFT.
	  Even with this exception, no PHRASE block's LEFT field will ever match
	NEVER.

	Let's put NEVER into FULL_SPANNING_LEFT:

		    FULL_SPANNING_LEFT:= NEVER ;

	  This causes GIVE's new IF-clause to always deliver FALSE, and hence
	to act like it did before our latest modification.  (P.LEFT will
	never match FULL_SPANNING_LEFT which contains the NEVER data).  Thus,
	this assignment statement is a sure-fire way to disable GIVE's new
	  feature of arresting full-spanning PHRASE blocks.


27.3.4
Final Modification To The Shared Activity

	  We update our activity at shared blocks, so as to arrest full-spanning
	  PHRASE blocks passed to GIVE.  Replace:

		    SEED :=	 [>  <*COPY_S*>  <] ;

	  by:

		    HOLDING LEFT:= NEW;	    "Left endpoint for the phrases
						     generated by COPY_S"
				FULL_SPANNING_LEFT:= LEFT;	  "Tell that to GIVE"
				FULL_SPANNERS:= NIL;	"GIVE puts full-spanning PHRASE
								 blocks here"
				C:= NIL ;

		    DO	<*COPY_S*>;	    "Generate all the phrases"

				SEED:= FULL_SPANNERS;	"All the full-spanning PHRASE
								 blocks arrested from GIVE"
		    ENDHOLD

	  This new program sets things up for GIVE, and finally acquires the
	  arrested full-spanning phrases.  It sets LEFT to a brand new
	  CHOICE_OF_PHRASES that nobody else references yet.	All phrases
	  generated by "<*COPY_S*>;" will naturally adopt LEFT as the left
	  endpoint for all full-spanning phrases.	 We tell GIVE that LEFT is the
	  left endpoint for full-spanning phrases by assigning LEFT into
	  FULL_SPANNING_LEFT.

	  We set FULL_SPANNERS to NIL, so that it will hold ultimately
	  only the arrested full-spanning PHRASE blocks.

	  We invoke COPY_S so as to generate all phrases.  Upon completion,
	  GIVE has put all full-spanning PHRASE blocks onto FULL_SPANNERS.  We
	  take those as our SEED.


		    BOX:	What potential problem would arise with our original
		    BOX:	activity at shared blocks?
		    BOX:
		    BOX:	How does our new method, having GIVE arrest full-
		    BOX:	spanning unit-length phrases, and putting them into
		    BOX:	SEED, solve the original problem?
		    BOX:
		    BOX:	How does GIVE know what is to be considered to be
		    BOX:	full-spanning?
		    BOX:
		    BOX:	Where does GIVE put all arrested, full-spanning
		    BOX:	phrases?
		    BOX:
		    BOX:	What simple assignment will disable GIVE's arresting of
		BOX:	full-spanning phrases?


27.3.5
Final Modification To The Dash-Notation's Meaning

	  Presently, GIVE's test for full-spanning phrase blocks is not quite
	airtight.  Consider the following two phrase generations:

		<X>
	and
		<Y> - <Z>

	Both <X> and <Y> have the same left neighbor, the value in LEFT.
	GIVE would presently think of both as full-spanning.  In fact, <Y>
	is not full-spanning.  It has a right neightbor (<Z>).

	We really want GIVE to consider a phrase block P full-spanning only
	when P.LEFT matches FULL_SPANNING_LEFT ~and C holds the far right
	endpoint.

	The variable C holds the far right endpoint only when there is no dash
	to the right of the present phrase generation.

	Therefore, let's turn off GIVE's recognition of full-spanning phrases
	on all but the rightmost statement of any sequence of statements
	connected by dashes.  Only that rightmost statement has C representing
	the right endpoint of full-spanning phrases.  Let's translate:

		    STATEMENT(1) - STATEMENT(2) - ... - STATEMENT(N)

	  into the following, which has our new contributions in italics:

		    HOLDING LEFT;	  "(Preserve LEFT so that it looks like we never
					    modified it)".
		    DO
				RIGHTHAND:= C;  "Remember present C, for our final
						     STATEMENT"

				~SAVE:= ~FULL_SPANNING_LEFT ;	  "Remember
									   FULL_SPANNING_LEFT"

				~FULL_SPANNING_LEFT:= NEVER;	  "disable GIVE's new
									   feature"

						    C:= NIL;	  ~STATEMENT(1)

				LEFT:= C;	    C:= NIL;	  ~STATEMENT(2)
				LEFT:= C;	    C:= NIL;	  ~STATEMENT(3)
				...
				LEFT:= C;	    C:= NIL;	  ~STATEMENT(N-1)

				LEFT:= C;
				C:= RIGHTHAND;
				~FULL_SPANNING_LEFT:= ~SAVE;	  "Re-enable GIVE's
									   new feature"

				~STATEMENT(N)   "Rightmost STATEMENT"
		    ENDHOLD

	  We disable GIVE's recognition of full-spanning unit-length
	phrases on all but the rightmost statement.  Disabling occurs via
	tha assignment:

		FULL_SPANNING_LEFT:= NEVER ;

	and the re-enabling occurs by setting FULL_SPANNING_LEFT to its
	original value (SAVE).  Notice how C and FULL_SPANNING_LEFT are
	restored to their original values at the same time, when we enter the
	rightmost statement.
      ---------------- Parentheses in previous paragraph around "1", "2"
      ----------------  "3", and "N" and "N-1" mean subscripting! -------------

	The meaning of "full-spanning" is a local concept.  Even though
	we shut off the notion of "full-spanning" in some statements, a
	statement can establish a ~new notion of full-spanning, use it,
	and then abandon it.  These different meanings of full-spanning are
	protected from one another by the fact that we restore
	FULL_SPANNING_LEFT when we are done using it.


		BOX:	Why have we modified the dash notation's meaning?
		    BOX:
		    BOX:	How does the modification assure that GIVE will
		    BOX:	arrest ~only full-spanning unit-length phrases?


27.4
Finding All Shared Blocks

	  Given a semantic block, a BASIC_PROCESS, how do we manage to travel
	  its internal structure so as to discover which blocks are shared?
	  If we can do this, we can objectively modify each shared node, S,
	  as shown earlier, so that S will behave as we wish a shared block to
	  behave.

	pic

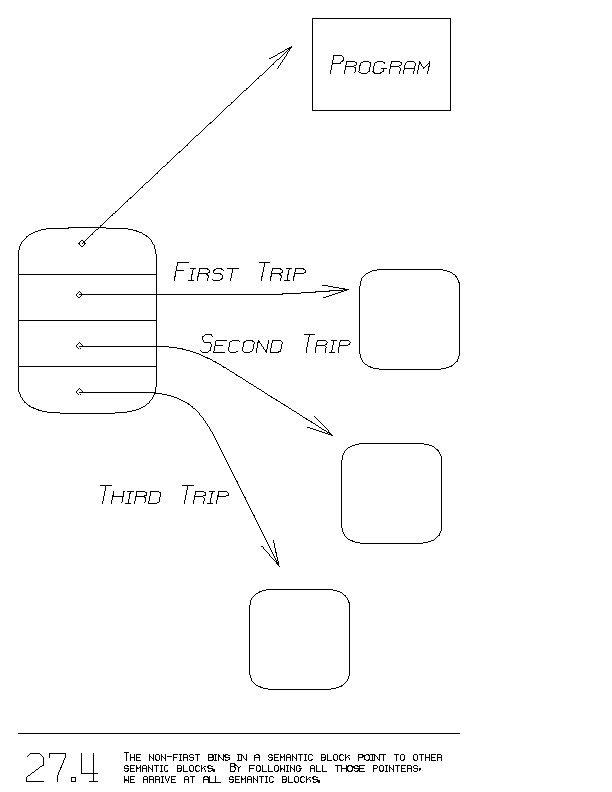

	  Figure 27.4 shows a semantic block.  It points to three sub-blocks.
	  We can visit all sub-blocks in a semantic block by the following
	  procedure MARK_BLOCK.

	  We present MARK_BLOCK in English and not in ICL because in ICL, a
	  BASIC_PROCESS (semantic block) can only be ~invoked.  We can't see the
	individual bins in ICL.  In our implementations so far, MARK_BLOCK is
	written in assembly language:

		DEFINE	MARK_BLOCK( S: BASIC_PROCESS ):

			for each non-first bin in S, which we will refer to
						     as B
			DO
				MARK_BLOCK(B);
			END
		ENDDEFN

	Recall that the first bin in a BASIC_PROCESS points not to another
	BASIC_PROCESS, but to a ~program ~block of machine language code.
	Only the non-first bins point to other BASIC_PROCESSes.

	pic

	MARK_BLOCK, given a BASIC_PROCESS S calls itself recursively with each
	of its sub-blocks.  Each of those recursive calls naturally follows all
	sub-sub-blocks of each of those sub-blocks, and so on.  MARK_BLOCK will

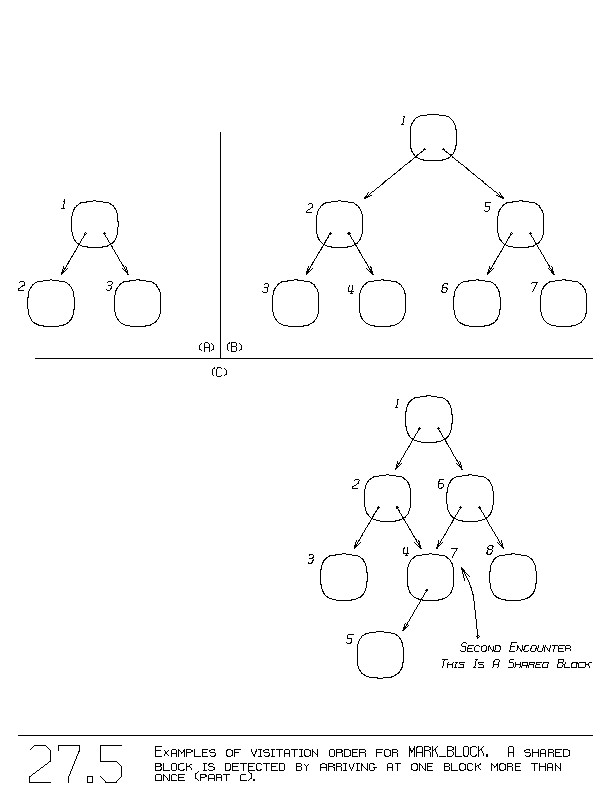

	visit all blocks accessible from any given semantic block.  Figure 27.5
	(a) and (b) show examples of visits.  The blocks are numbered to
	indicate the order in which they are visited.

	Let's modify MARK_BLOCK so as to ~mark each block it encounters.	We
	  reserve a single bit in each semantic block, and assume that its value
	  is initially zero.  To mark a block means turning on that single bit
	  in the block:

		    DEFINE	MARK_BLOCK( S: BASIC_PROCESS ):

				Mark the block S

				for each non-first bin in S, which we will refer to
								     as B
				DO
					  MARK_BLOCK(B);
				END
		    ENDDEFN

	  This procedure winds up ~marking all the semantic blocks accessible
	  from the one semantic block given to MARK_BLOCK initially.  (This
	  marking is an objective modification).

	  We are ready to detect shared blocks.  Recall that a shared block has
	  two or more pointers pointing to it.  Since MARK_BLOCK follows ~all
	  pointers, MARK_BLOCK will encounter a shared block ~more ~than ~once.
	  (figure 27.5(c)).  It will arrive at the shared block once from each
	  pointer.

	  Our final modification to MARK_BLOCK detects whether or not
	  the given block has been encountered before:

		    DEFINE	MARK_BLOCK( S: BASIC_PROCESS ):

				IF  S is marked  "i.e., this is a non-first arrival"

				THEN	  NOTE_SHARING(S);

				ELSE
					  mark S

					  for each non-first bin B in S
					  DO
						    MARK_BLOCK(B);
					  END
				FI
		    ENDDEFN

	  In case S is marked, we know we've been here before.  That means
	this is a second arrival, or in general, a non-first arrival.  Two
	arrivals implies this block S is shared.  Thus, if S is marked, we
	call NOTE_SHARING.

	NOTE_SHARING refers to the procedure shown in the previous section,
	where we assigned objectively over S, as in:

		@(S):=  //{COPY_S;SEED;}   ...   \\ ;


27.4.1
The Cost Of Marking

	Since we don't call MARK_BLOCK recursively if the block is already
	  marked, each pointer to a block is followed exactly once.	 Since the
	  number of pointers in the entire semantic structure is bounded above by
	  the number of blocks in the structure (times a constant factor), our
	  MARK_BLOCK procedure consumes execution time proportional to the size
	  of the semantic structure.

	  The largest possible size of a semantic structure is at worst
	  a polynomial function of the number of characters originally parsed.
	  Even though the semantic structure can represent exponentially many
	  meanings, our processing time is fortunately only polynomial.

		    One more refinement would be to avoid calling NOTE_SHARING if
		    NOTE_SHARING has already been called upon the block S.	That
		    is, a block with ~three or more pointers to it will presently
		    call NOTE_SHARING upon that same block ~two or more times.  We
		    really need only to NOTE_SHARING only once.

		    (After calling NOTE_SHARING the first time, we could mark S
		    with another bit besides the bit used for marking.  This bit
		    would indicate that we already know that S is shared.  We would
		    test this bit prior to calling NOTE_SHARING next time around,
		    and hence surpress further calls to NOTE_SHARING on S).

	    BOX:  BOX:	What does MARK_BLOCK do?
		    BOX:
		    BOX:	How does it know when it reaches a shared block?
		    BOX:
		    BOX:	What does NOTE_SHARING do to a given shared block?
		    BOX:
		    BOX:	Can the marking process inadvertantly consume
		    BOX:	exponential time?	 Why?


27.5
Summary For The Semantics Of The Syntax Grammar

	  For the semantics of the syntax grammar, or any grammar whose
	  semantics generate phrases in another language, here is what we
	  want to do at OR-blocks and shared blocks:

	     1) OR-block:

		    OR:= //[A;B;]	  <*A*>;  "A generates its phrases"
					  <*B*>;  "B generates its phrases"

					  "The resulting phrases together might be
					   ambiguous"
			   \\ ;

	     2) Shared block, named S:

		    SEED:= NIL;
		    LAST_TIME:= 0;
		    ORIGINAL:= COPY(S);

		    @(S):= //{SEED;LAST_TIME;ORIGINAL;}	  BEGIN  VAR P=PHRASE;

			IF  PRESENT_TIME > LAST_TIME	THEN

					  "Set SEED... "

			 HOLDING LEFT:= NEW;  "Left endpoint for the phrases
						     generated by COPY_S"
				   FULL_SPANNING_LEFT:= LEFT;	  "Tell that to GIVE"
				   FULL_SPANNERS:= NIL; "GIVE puts full-spanning PHRASE
								 blocks here"
				   C:= NIL ;

			 DO	<*COPY_S*>;	    "Generate all the phrases"

				SEED:= FULL_SPANNERS;	"All the full-spanning PHRASE
								 blocks arrested from GIVE"
			 ENDHOLD

			 LAST_TIME:= PRESENT_TIME;
			FI

			"GIVE from SEED..."

			FOR P $E SEED;
			DO
				P.LEFT:= LEFT; "(Incorporate the global variable LEFT)"
				P.SEM:= COPY(P.SEM);
				GIVE(P);
			END
		     END
		    \\ ;

	    BOX:  BOX:	What does the OR-block do for semantics that generate
		    BOX:	phrases in another language?
		    BOX:
		    BOX:	If PRESENT_TIME remains unchanged, what IF-clause
		    BOX:	supresses non-first invocations of the original
		    BOX:	semantics?
