CHAPTER 31
INTRODUCTION TO MEMORY MANAGEMENT
This chapter focuses on ~memory ~management. Throughout the preceding
chapters, we assumed we could acquire a new block of memory just by
wishing for it. Memory management is a subsystem which accomodates
such wishes. (Chapter 9 introduced some uses of blocks of memory).
This chapter introduces no new language processing techniques.
However, all our language processing techniques and numerous other
computer applications require automatic memory management. Automatic
memory management is often referred to as ~garbage ~collection.
There are a variety of memory management techniques, all of which have
some drawbacks of varying severity. We begin with the simplest
possible memory management technique.
31.1
Simplest Memory Management
The simplest form of memory management allocates each desired block

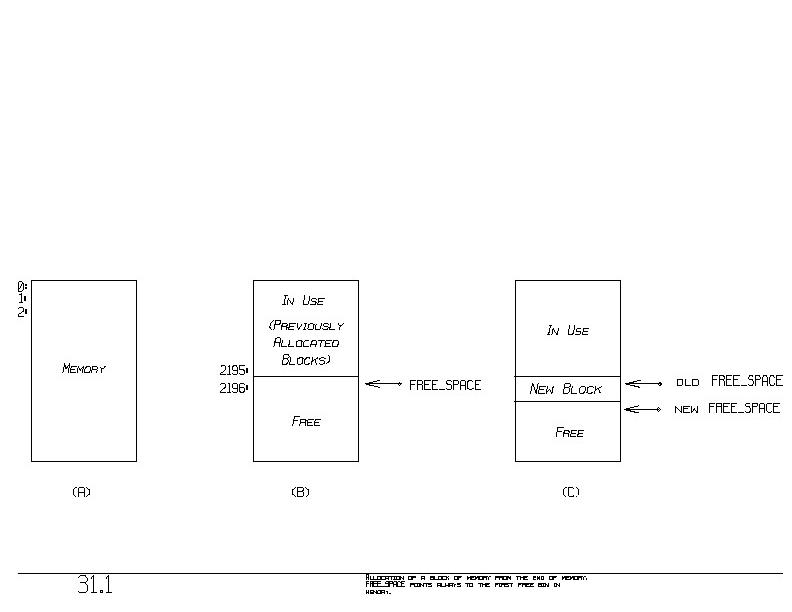

from the top of memory. Figure 31.1(a) shows all of memory. New
blocks are allocated from the top of the figure. Figure 31.1(b) shows
the situation at any point in time: Previously allocated blocks appear
at the top, and the remaining bottom part is free space. It is
unused presently.
We maintain a pointer to the ~beginning of free space, and hold it in
a variable called FREE_SPACE. In the figure, everything above
FREE_SPACE is used. FREE_SPACE itself points to the very first bin in
free space.
We allocate a block via the procedure:
ANSWER:= FREE_SPACE ;
FREE_SPACE:= FREE_SPACE + size_of_the_desired_block ;
This procedure leaves in ANSWER the address of the first bin of the new
block. That is presently the first bin in free space. This program
then moves FREE_SPACE downward so as to point to the first bin
following our new block. That is, after allocating the new block,
free space decreases in size, and FREE_SPACE is left pointing to the
now first free bin.
The drawback with this simple method is that eventually we will run
out of memory. Free space will reduce to zero size, making it
impossible to allocate any new blocks. At this point, the entire
system crashes.
The system crashes even if only ~some of the allocated blocks are
still needed. It is easily possible that 90% of the blocks allocated
are no longer used. If we could discover blocks no longer in use,
we could reuse them and hence avoid the system crash.
31.1.1
Recycling Of Used Blocks
Suppose the computer program knows when it is done using a block.
Can the program give that block back, i.e., ~free it? Yes. If that
block were the last block allocated, we could give it back simply by
restoring FREE_SPACE to its value prior to that block's allocation.
Just subtract the block's size from FREE_SPACE.
It is very rare that the program wants to free the
~last block. Most often, the block lies somewhere in the middle of
the used portion of memory. We must therefore provide a way to
represent free blocks that reside in the middle of used space.
31.1.2
The Free List
The nice thing about a free block is that we, the memory management
subsystem, can store ~anything we want into the free block.
Since all free blocks contain ~at ~least one bin, let's make use of
the first bin in all free blocks. We will have the first bin in each

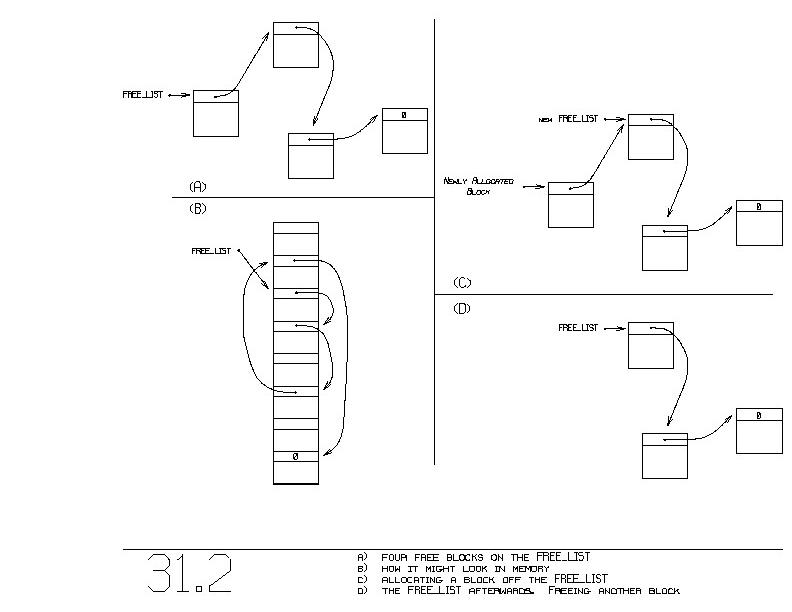

point to another free block. Figure 31.2(a) shows a set of
four free blocks, with one pointing to the next. Such a list of
free blocks is called the ~free ~list. The ~order of the blocks on
the free list is irrelevant. All we need from the free list is a way
to get to ~another free block.
31.1.2.1
Allocation From The Free List
When no more memory is available, i.e., free space is empty, we look
instead at the free list. The variable FREE_LIST always points to the
first block in the free list. We take that first block and deliver it
as the newly allocated block.
The allocation procedure follows:
ANSWER:= FREE_LIST ;
FREE_LIST := the contents of the ~first ~bin of the block
to which FREE_LIST points ;
The new block (ANSWER) is the same block that FREE_LIST pointed to.
FREE_LIST is then updated so as to point now to the ~second block
on the free list. The contents of the first block can now be
dictated by the user program.
31.1.2.2
Freeing Blocks By Putting Them Back Onto The Free List
When the user program knows that it won't be using a given block
anymore, it can recycle it by putting it back onto the free list,
as in the following. Assume X points to the given block:
the_first_bin_of X := FREE_LIST ;
FREE_LIST:= X ;
FREE_LIST is made to point to the block X, but first, block X's first
bin is made to point to the old block referenced by FREE_LIST. This
transforms figure 31.2(d) back into figure 31.2(a). The free list is
lengthend by one.
31.2
Fixed-Sized Versus Variable-Sized Blocks
This scenario of taking blocks from and putting blocks back onto the
free list works this easily only if all blocks are the same size.
When blocks can differ in size, it may be that the first block on the
free list is ~too ~small to serve as the newly desired block. It
might be 8 bins long whereas the newly desired block may require 9
bins.
When block sizes may differ, we refer to the set of all blocks as
~variable ~sized. This does not mean that a given block can grow or
shrink in size. It means merely that different blocks can have
different sizes. In contrast, when all blocks are the same size, we
refer to the set of blocks as ~fixed ~sized.
If we want to accomodate variable sized blocks, we must be prepared
to search the freelist to find a block that is big enough to hold the
newly desired block, as the first blocks on the free list might be
too small.
The time consumed by and the complexity of the support for variable
sized blocks can be enormous relative to that for fixed sized blocks.
We will return to consider variable sized memory management in Chapter
34. We now concentrate on the simpler, and more efficient, fixed
sized block memory management.
BOX: Where does our simplest form of memory management find
BOX: memory for new blocks?
BOX:
BOX: What is the ~free_list for?
BOX:
BOX: Can a block change size within variable-sized
BOX: memory management?
31.3
Why Automatic Memory Management?
Memory management provides for the ~allocation of new blocks and the
~freeing of blocks no longer in use. Allocation and freeing sound
symmetrical, but the complexity of the computation required to perform
each differs dramatically.
The allocation of blocks is particularly easy for a computer program
to perform because the program knows most definitely when it needs a
new block of memory. For example, in ICL when one writes:
P := [ REAL_PART: 1 IMAGINARY_PART: 2 ] ;

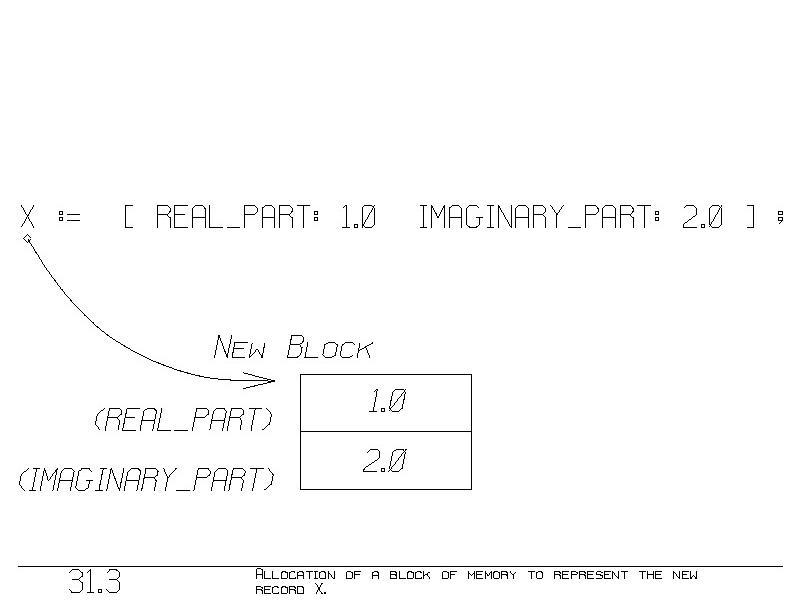

ICL knows to allocate a block of memory. ICL might allocate a two-
bin block, and then fill in the two bins with the two components, as
shown in figure 31.3. Any time one or more data are to be associated
with one another, a new block of memory is allocated to hold those
data. Thus, it is always easy to know when to ~allocate blocks.
In contrast, knowing when to free a block may be next to impossible.
There is no notation that corresponds to freeing a block.
Automatic memory management (garbage collection) never requires
the program to specify what blocks to free, or when to free them.
~Block ~freeing is done automatically, behind the scenes. Thus, all
that remains to do is the easy part, the allocation of blocks.
Non-automatic memory management requires the user program to know
when to free what blocks.
31.3.1
Manual Block Freeing Can Give Rise To The Most Severe Of Bugs
You might believe that it is easy for a program to know when it is
finished using any given block. In fact for nontrivial computer
applications, it may be next to impossible to decide whether a given
block is in use or not.
The computation of when to free what blocks can be arbitrarily complex.
For example, after writing:
X:= [ REAL_PART: 1 IMAGINARY_PART: 2 ] ;
we know that the newly allocated block (figure 31.3) is in use, because
X points to it. If the very next thing written were:
X:= [ REAL_PART: 3 IMAGINARY_PART: 4 ] ;
then the old block that X used to point to is no longer in use. We
see here one way a block ceases to be used. The one variable that

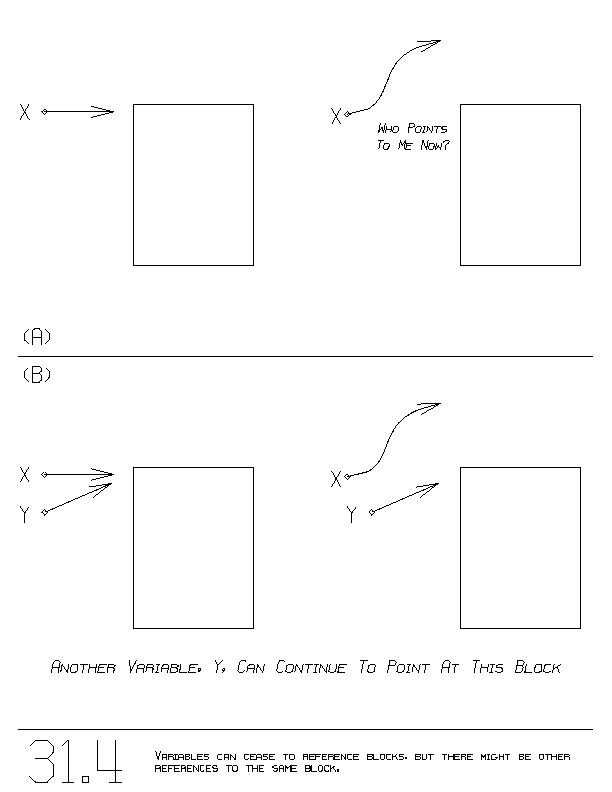

pointed to it, X, is made to point elsewhere (figure 31.4(a)).
This example of a block ceasing to be used might lead one to believe
that whenever you assign into a variable (X), the block to which it
~used to point ceases to be in use. However, this is often incorrect.
Consider the following program:
X:= [ REAL_PART: 1 IMAGINARY_PART: 2 ] ;
Y:= X;
X:= [ REAL_PART: 3 IMAGINARY_PART: 4 ] ;
The second assignment makes Y point to the same block to which X
points. By the time we arrive at the last statement, Y
continues to point to the old block. Upon executing the last
statement, the block to which X used to point ~is ~still ~in ~use,
from Y's point of view! (See figure 31.4(b)). Therefore, we must not
free it just because X alone ceases to reference it.
The difficulty in knowing when to free a block arises because blocks
may be ~shared from multiple points of view. We just saw a block
referenced from two points of view, X and Y. A block might be
referenced also from other blocks, as the X block is referenced as a
result of the following:
Z := [ FIELD1: X FIELD2: 3 ] ;
The new Z block comes to reference the old X block. Now, even if X
and Y were assigned new values, so as to cease referencing the old
X block, Z still requires that block, as it remains accessible from
the point of view of the Z block.
31.3.1.1
Freeing Too Late
Without automatic memory management, where explicit freeing is
required, you can commit errors by freeing a block too soon or too
late. If you free a block too late, your program will still run
correctly, although it will crash when memory is used up.
By freeing too late (like never), memory eventually fills up with
unused blocks that can't be recycled because they are thought to still
be in use. Even if there is only one place in your program where you
forget to free a block, repeated executions of that program fragment
will leave unfreed many blocks. Thus, freeing too late or never can
crash a program in short order.
31.3.1.2
Freeing Too Soon
While freeing too late eventually crashes the user program, the
program's behavior up until that point is still correct. In contrast,
freeing too soon can quickly cause severe program errors.

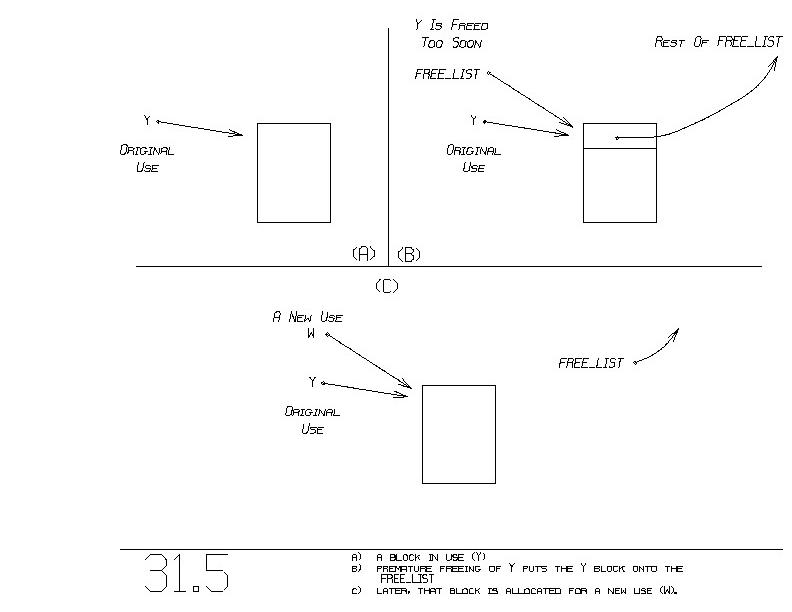

When a block is freed too soon, it comes to reside on the free list
~and continues to be in use from some point of view (figure 31.5(b)).
This is exceedingly dangerous.
Eventually, that block will be allocated (off the free list) to some
other need (figure 31.5(c)). At this moment, the old point of view (Y)
believes that that block belongs to it, while simultaneously this new
point of view (W) believes that the block belongs to it. Whenever one
or the other points of view writes into that block, the other point of
view will be profoundly fooled. They are using the ~same memory for
two unrelated purposes. This is analgous to two cars occupying the
same spot an an intersection - a collision.
BOX: Which is harder to know: when to ~free a block or
BOX: when to ~allocate a block?
BOX:
BOX: What can happen if you free a block too late?
BOX:
BOX: What can happen if you free too soon?
31.3.2
Debugging Premature Freeing
Suppose you commit this error of freeing a block too soon. How hard
is it to find this bug and correct it? This kind of bug is by far the
hardest to find of all kinds of bugs.
Imagine you are one of the contexts that believes this block is yours.
It may be the POINT datum in your variable P, for example. The symptom
of this kind of bug is the mysterious overwriting of data in the block.
For example, the X-coordinate of your point is overwritten. It might
even be overwritten by data of a foreign type!
Suppose you discover the two contexts involved. One is victimized by
having its data overwritten. The other context does the writing.
Even knowing these two contexts, neither is at fault! ~Someone ~else
~commited ~the ~error by freeing a block prematurely. That prematurely
freed block has evolved into a conflicted usage.
Tracking down such a bug requires consideration of the entire program.
Unrelated parts of the program may be interacting unexpectedly by
chance, by sharing the same memory inadvertently. What's so bad about
this bug is that the symptom can be understood only by considering
interactions in computer memory. There is no straightforward
way to get to the cause from the symptom.
31.3.2.1
The Symptom Is Always Foreign To The Application Domain
Such mysterious overwriting corresponds to nothing in the application
domain. Of all the ways objects in the application domain may
interact, such conflicted memory usage can introduce other,
~meaningless interactions foreign to the domain. Unfortunately, the
programmer has to actually consider such meaningless interactions in
order to make sense of the situation!
There often is a loss of datatype integrity. The same block
could be used to represent simultaneously two objects of distinct
types. Even in strongly typed languages like ICL, ADA, and PASCAL,
premature freeing undoes that type checking. In PASCAL, and ADA
without garbage collection, type integrity is vulnerable, despite the
thorough compile-time type-checking.
For example, one context may use the block to represent an apple,
whereas the other uses it for an orange. It is most likely that in the
computer application, no apple ever spontaneously becomes an orange.
However, if the apple and orange use the same block, then "taking a
bite" of the apple could have adverse effects on the context that
expects an orange.
If we're very lucky, the act of taking a bite of the ~apple will be so
civilized as to correspond to taking a bite from the ~orange (but
we'd still be puzzled why the orange had a byte taken from it). This
would be a fortunate situation because the operation of taking a bite
would be common in both contexts, and is somewhat understandable by the
programmer.
In fact, it is very unusual for an operation on one type
to make any sense whatsoever within another type. For example, if
instead of apples and oranges we were dealing with INTegers and REALs,
the operation of incrementing a REAL (from one of the points of view)
would make no sense from the other point of view, the context that
expects a INT. Incrementing an INT and a REAL are very different
operations.
It is the loss of datatype integrity that really mystifies the
situation. Such errors cannot be understood in terms of the
application's universe. They can be understood only in terms of the
details of computer memory, including the notions of pointers and
addresses. This can be daunting if thousands or millions of blocks
exist.
To find such a bug, the poor programmer is forced to understand
his or her application in a wierd universe where apples and oranges can
spontaneously interact in meaningless ways.
Thus, the manual freeing of blocks has a thin tightrope to walk indeed.
Freeing too late eventually crashes the system, and freeing too soon
causes incomprehensible errors and the loss of datatype integrity.
These kinds of bugs are so severe that introducing a schedule for
fixing such a bug becomes impossible. We've seen errors of this type
take at least three months each to find, which is very possible in the
C programming language and in assembly language.
By not providing automatic memory management, you're forcing down the
programmer's throat a domain foreign to his or her application, a
domain that is fraught with details and involves meaningless
interaction among vastly unrelated parts of the entire program.
Automatic memory management is a must within complex applications.
The single greatest contribution of the programming language LISP
may have been its automatic memory management. That gave the biggest
boost to the field of artificial intelligence, which began with and
continues to use LISP.
BOX: Can compile-time type-checking be rendered ineffective
BOX: by freeing blocks too soon? Why?
BOX:
BOX: Does freeing too soon cause a symptom that is always
BOX: meaningful in the application domain?
BOX:
BOX: Why is it difficult to debug premature freeing, even if
BOX: you've identified the two sections of your program that
BOX: are inadvertantly sharing the same block?
